BMW 5 Series / M5 GPS Navigation Car Stereo (2003-2010)

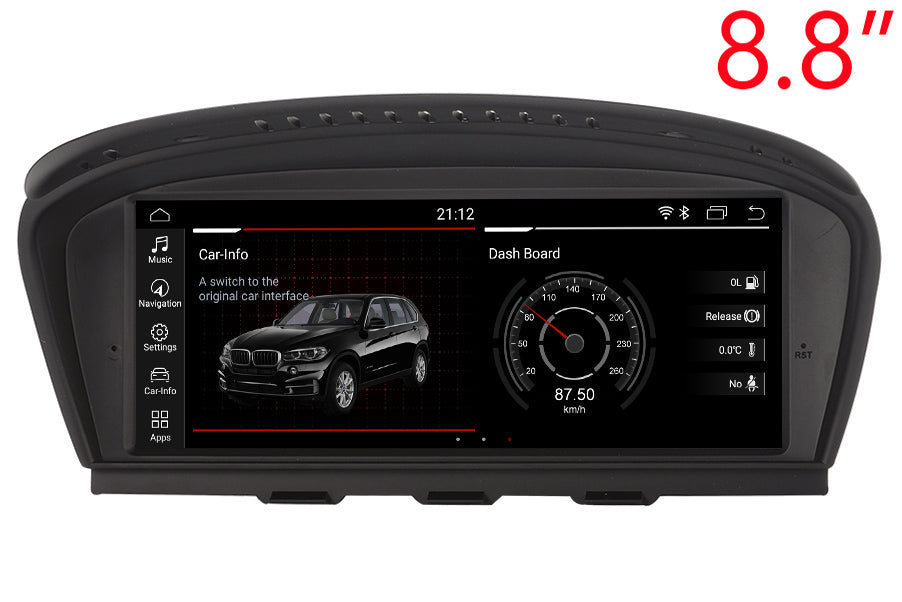

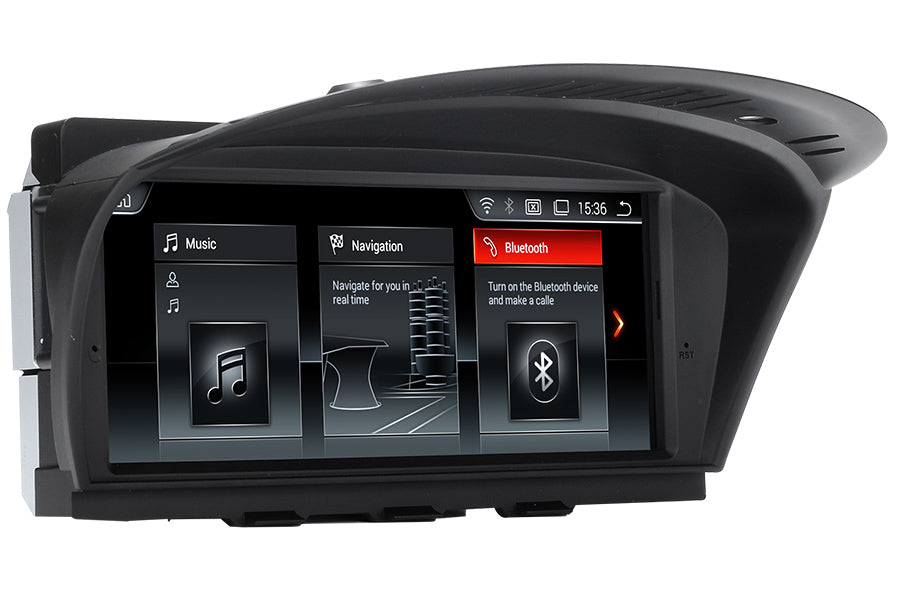

Aftermarket GPS Navigation Head Unit is specially designed to replace BMW 5 Series(E60/E61)/6 Series(E63/E64)/M5/3 Series(E90/E91/E92/E93) factory LCD screem unit. It has the same plug and harness as factory head unit, plug and play. This head unit only replaces the original LCD screen unit and retains the factory FM/CD/Sirius unit, so ALL the original BMW car computer/CD/FM/AM/Sirius/XM will still work as before.
Compatible Vehicles:
BMW 5 Series (E60/E61) 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 CCC/CIC system with OEM 6.5"/8" screen
BMW 6 Series (E63/E64) 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 CCC/CIC system with OEM 6.5"/8" screen
BMW M5 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 CCC/CIC system with OEM 6.5"/8" screen
BMW 3 Series E90/E91/E92/E93/M3(2004-2013) CCC/CIC system with OEM 8.8" screen
Note above year range is for your reference only. Send a photo of the dashboard(radio system) to us if you are not sure about fitness.
Attention:
For BMW E60/E61/E63/E64/M5/E90/E91/E92/E93 with/without AUX audio input function, the accessories are different.

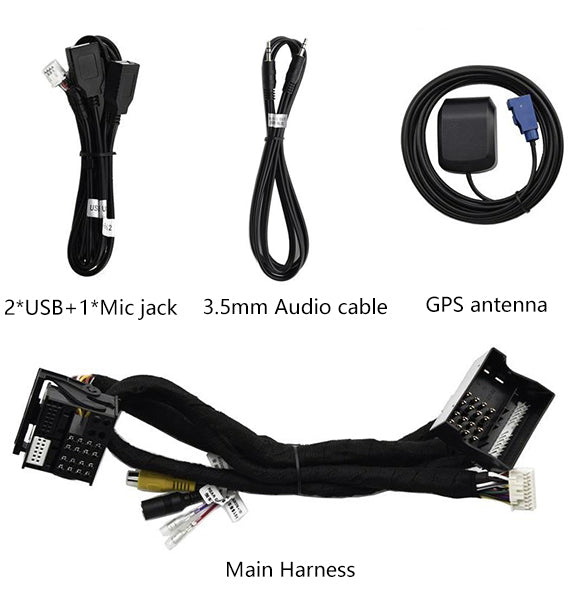

1. If you car has AUX-IN port, then the radio upgrade system sends audio signal to OEM BMW head unit through AUX-IN port. You don't need to buy anything else to make it work. All necessary accessories are included.
2. If your car does not have AUX-IN port, then there are two solutions:
A. Install this FM Transmitter: https://www.carnaviplayer.com/fm-transmitter-for-car-without-aux-in-p-1245, the radio upgrade system sends audio signal to OEM BMW head unit through FM. But the FM transmitter sound quality is not so good, since it transfer the audio through FM Channel, sometimes the sound is interfered
B. Use this AUX IN activator to activate the AUX IN feature on your car: https://www.carnaviplayer.com/bmw-3e905e606e63-2003-2010-ccc-aux-activator-p-1177, We highly recommend this device since the sound quality is much better than FM transmitter.
How do I know what system it is on my BMW?
Factory screen unit
Installation Photo
User Manual: https://www.carnaviplayer.com/docs/user_manual/BMW/BMW_USER_MANUAL_V0.1.pdf
Wiring diagram: https://www.carnaviplayer.com/docs/Installation_instructions/BMW_Wiring_Diagram.pdf
Installation video: https://www.youtube.com/watch?v=23N9nDTUnOk
Installation Guide: https://www.carnaviplayer.com/docs/Installation_instructions/8210.pdf
Operation video: https://www.youtube.com/watch?v=ZyHxMcXZ__Y
Backup camera video: https://www.youtube.com/watch?v=GjXbTAxazYs
| Operating system | Android |
| Display | 8.8-inch, resolutions 1280 by 480 |
| Processor | Qualcomm Snapdragon 8-core 2.0GHz |
| Memory | 4GB(6GB optional) |
| Storage | 64GB(128GB optional) |
| SD/TF card | One 3.0 card slot(Max 128GB) |
| USB port | USB 3.0 ports(Max 64GB) |
| Video play | MP4, AVI, RMVB, FLV, MKV 4K, H.264(AVC),H.265(HEVC) etc. |
| Video input | One video input(RCA port)(optional) |
| Camera input | One camera video input(RCA port) |
| Microphone | Internal & External Microphone(optional) |
| Bluetooth | Bluetooth 5.0 module |
| Network | Wi-Fi/3G(4G) Lte |
| Audio IC | RK616(Built in Core module) |
| GPS receiver | External GPS antenna(include) |
|
|
Navigation * Free maps preload and free updates |
 |
Network * Wi-Fi/3G(4G) Lte |
 |
Radio * Remains original BMW AM/FM/Sirius/XM tuner |
 |
Apple CarPlay * Support Apple Carplay with iPhone |
 |
Bluetooth * Hands free phone call* Load phone book from you mobile phone * Bluetooth music stream A2DP * Internal & External Microphone(optional) * Compatible with iPhone & Android mobile phone |
 |
Android Auto * Support Android Auto with Android phone |
 |
Backup Camera(camera is optional) * Display reverse image automatically |
 |
SD/USB * SD card/USB music, video, photo and ebook |
 |
TV(TV tuner is optional) * Support ATSC/DVB-T/DVB-T2/ISDB-T |
 |
DVR(camera is optional) * support forward video recoder while driving |
Is this product plug and play? Do I need to program or code my BMW? Do I need to buy external GPS antenna? Can I still check the car info as the OEM screen?
Answer: Yes, it is totally plug and play, it has the same plugs and harness as original BMW system. You do not need to program your car when installation, totally plug and play. All necessary accessories are included in the package. You do not need to buy anything else to make it work. You can still check the original BMW car info as before.
How do I switch the new Android system to the original BMW CCC/CIC/NBT/EVO interface?
Answer: Please tap “Car-infoâ€?icon on the home screen OR long press (3 seconds) MENU button on iDrive to switch to original CCC/CIC/NBT/EVO interface.
How do I switch the original BMW CCC/CIC/NBT/EVO interface to new Android system?
Answer: Please tap the screen or long press (3 seconds) MENU button on iDrive.
Why it shows “No signalâ€?when tap “Car-infoâ€?or switch back to original BMW interface?

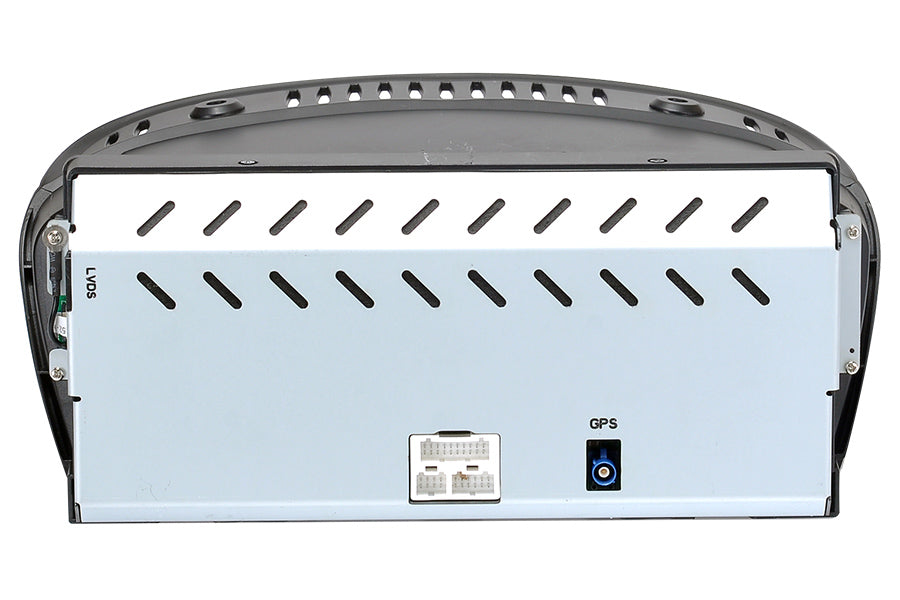

Answer: Please check the LVDS port. Make sure you connect the LVDS plug (removed from the OEM screen) to the new screen.
Different systems have different LVDS plugs.
Why there is no audio from new Android system?
Answer:
A. Please check the AUX-IN cord. Make sure it is plugged in the AUX-IN port on your car.
B. And also you need to activate AUX-IN function.
CD/Entertainment/External devices/External audio input (AUX front)/activate.
Why does the Sirius/XM radio, original car computer info and factory camera does not display? Why does the AUX-IN volume stucks on zero and not adjustable?
Answer: Please check the fiber optics plug, you need to move it from the original connector to new connector we provided.
My car has factory backup camera, why it does not display when reverse the car?
Answer: Please check the Settings/system setting/Rear camera type. Make sure the "Original camera" option is activated.
